MAGDRONE R3

UAV / Drone Magnetometer Survey Kit

CSSPakistan is proud to be associated with SENSYS – one of the Leading German Providers of Magnetic and Electromagnetic Survey Systems and Components. SENSYS is located in the historic Intersputnik satellite earth station building located around 50km Southeast of Berlin between Fürstenwalde and Bad Saarow.

One of the pioneer products of SENSYS is The MagDrone R3 – an ultra portable magnetometer survey kit attachable to any UAV / drone with a 1+kg payload only. The kit consists of Carbon fibre sensor tube with two built-in 3axis Fluxgates, a 1-button data logger with internal SD card, rechargeable batteries, an integrated GPS as well as a serial live data output. It only needs some cable ties to mount the kit directly to the UAV.

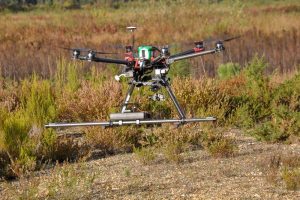

SENSYS MagDrone R3 in Action

The MagDrone R3 is made and optimized for small and mid size survey UAVs that are shaped for less payload and longer flight times.

The MagDrone R3 survey kit can be used for general purpose surveys, science related magnetic cartographies, mine exploration, as well as for safety relevant operations such as area scanning for bombs and ammunition, preventive check and surveillance of areas and camps against intrusion.

Associated software helps to identify flown tracks, cut, filter and compensate the raw data, generates a preview and exports into various formats to further process the recorded values i.e. using the MAGNETO® software, GIS tools or Matlab with your own scripting.

Salient Features

Lowest payload: The MagDrone R3 is a ultra portable magnetometer survey kit to be attached to any UAV / drone with a minimum payload of 1kg.

Ready to go: The kit consists of an ultra light weight sensor tube with two built-in 3-axis Fluxgates with 150pT resolution, a 1-button data logger with internal SD card, rechargeable batteries and an integrated GPS. It is made and optimized for small and mid size survey UAVs / drones that are shaped for less payload and longer flight times.

Compact setup: Thanks to the 200Hz sampling rate the MagDrone R3 can directly attached to the landing gear of a drone – even in closest distance to the motors! Compared to others, the MagDrone R3 can distinguish between motor noise, net frequencies, temporary interferences and ground signal.

Universal usage: Depending on capabilities of the UAV / drone in terms of maneuverability and GPS precision, the MagDrone R3 survey kit can be used for general purpose surveys, science related magnetic cartographies, exploration studies on hidden minerals, as well as for safety relevant operations. Those can include area scanning for bombs and ammunition, as well as preventive surveillance of areas and camps against intrusion.

Simplicity: The frame ensures an easy attachment to any kind of UAV / drone by screwing, strapping or bonding both together.

Intuitive science: The data logger is continuously recording while in air. Afterwards the data can be downloaded to any Windows® computer to further process the measurement values i.e. using the SENSYS software MagDrone DataTool, MAGNETO®,GIS tools or Matlab for own scripting.

MagBase: Together with the SENSYS tool MagBase acting as a reference station, the drone based magnetometer data can be correlated with those from the MagBase. That will enable the cancellation of temporary noise sources such as crossing vehicles or net frequencies.

SENSYS Remote App: with the Android Remote App user can establish a Bluetooth connection between MagDrone R3 and their Smartphone to check system condition prior and after flying, initiate or stop data recording as well as see live readings at 2Hz sampling rate to check system, ground and environmental conditions. Get your App from the Google PlayStore!

Technical Specifications

1. General Technical Data

Power Supply 11.1 V; 1,950 mAh Li-Ion re-chargeable battery
Operating Temperature -20°C to +50°C
Weight / with Li-Ion battery 750 g / 884 g
Overall power consumption 500 mA
Sensor tube dimensions (W x D x H) 1,070 x 22 mm

2. FGM3D/75 Fluxgate

Number and orientation of sensors 2 pieces, laid horizontal, parallel
Specified measurement range ±75,000 nT (higher ranges available on request)
Number of sensor axis 3
Distance between sensor centre points 1,000 mm

3. Datalogger

Power 50 mA
Sensor input Internal wired
User Interface On/Off + Start/Stop button; status LED
Survey mode Recording when start/stop pressed
Sampling rate 200 Hz (higher rates available on request)
Internal memory 2 GB
Datalogger dimensions (W x D x H) 230 x 128 x 43/73 mm

4. Standard Package

MagDrone R3 Sensor tube, 2 pcs. built-in FGM3D/75 sensors, data logger (fixed to tube), 2 pcs. rechargeable batteries
Rugged case (W x D x H) 1120 x 290 x 110 mm
Internal GPS U Blox PAM-7Q
Peripherals Data transfer cables (USB), set of internat. power plugs, wall charger, accessory bags, USB memory stick with software
Documentation Certificate, manual, quick guide
PC software MagDrone DataTool

4. Optional Accessories

Data processing MAGNETO® Software
